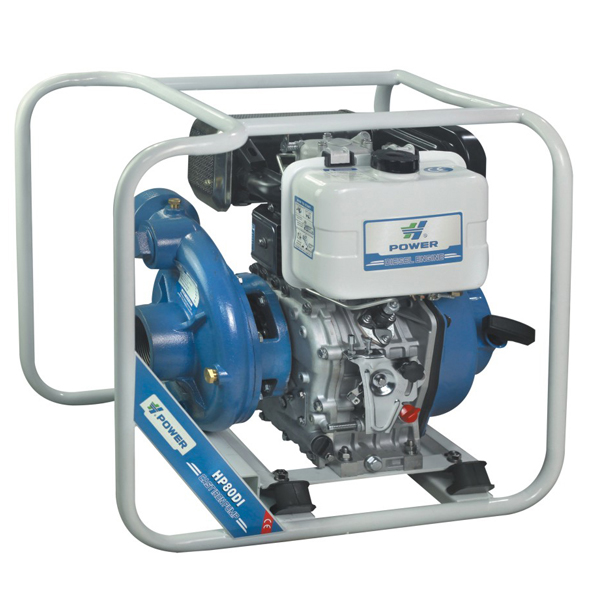

HP80DI(E)

 Main Features
Type HP50DI(E) HP80DI(E) HP100DI(E)
Pump Inch 2'' 3'' 4''
Rated head(m) 63 66 55
Max.suction head(m) 8 8 6
Rated capacity(m³/h) 28 39 110
Self-priming time(s/4m) 80 120 120
Engine Mode HP178F(E) HP186FA(E) HP192F(E)
Type Single cylinder、4-stroke、air-cooled、vertical、diesel engine
Starting fashion Manual or electric start
Fuel tank capacity(L) 3.5 5.5 5.5
Pump Set Continuous running time(h) 2.0 2.0 2.0
N.W./G.W.(kg) 52/57 57/62 60/65
Dimension L×W×H(mm) 570×450×550 645×470×600 645×470×600
Package Size L×W×H(mm) 580×460×570 655×480×615 655×480×615
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
