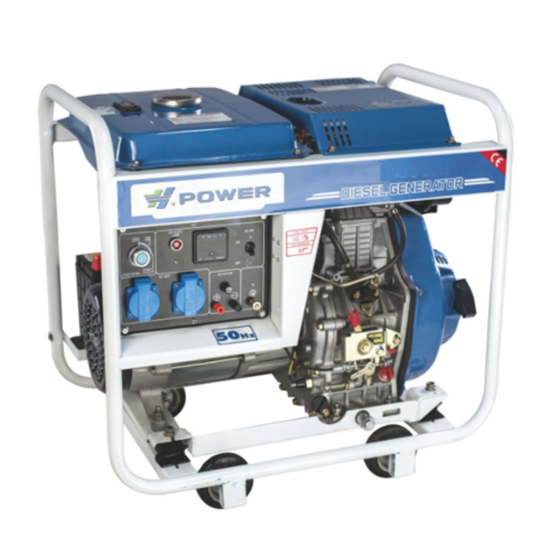

HP8000CX(E)

 Main Features
Type
HP6500CX(E)
HP7500CX(E)
 HP8000CX(E) HP12000CX(E) HP125000CX(E)
Alternator
 Rated frequency(Hz)
50
 60 50 60 50 60 50 60 50 60
Rated output(kw)
4.6
 5.0
5.2
 5.7 6.0 6.2 8.5 9.5 10.0 11.0
Max outpu(kw)
5.0
 5.5 5.7 6.2 6.4 6.7 9.0 10.0 10.5 11.5
Rated voltage(V) 110、115、120、220、230、240、110/220、115/230、120/240
Power factor(cosφ) 1.0
Engine
 Mode
HP186FA(E)
 HP188F (E) HP192F (E) HP2V86FE HP290FE
Type Single-cylinder、 4-stroke、vertical、 air-cooled 、diesel engine V-twin I-twin
Starting fashion Manual or Electric Start Electric Start
Generator Set
 Fuel tank capacity(L) 12.5 16 16
Continuous running time(h) 6.5 5.5 6.5 5.5 6.5 5.5 7.5 6.3 6.0 5.0
N.W./G.W.(kg) 115/118 116/119 121/124 195/205 245/275
Dimension LxWxH(mm)
720x480x585
 720x480x585 720x480x585 1000x640x855 1030x670x820
Package size LxWxH(mm)
740x495x600
 740x495x600 740x495x600 1030x685x865 1150x720x960
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
