Model	HP170F(E)		HP173F(E)		HP178F(E)		HP186F(E)		HP186FA(E)		HP188F(E)		HP192F(E)		HP195F(E)		HP1100F(E)		HP1103F(E)

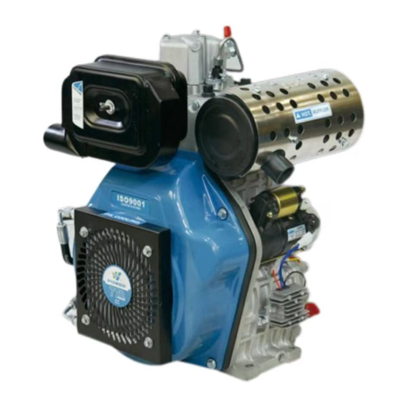

Type	Single-cylinder、Vertical、4-stroke、Air-cooled、Diesel engine
Bore×Stroke(mm)	70×55		73×59		78×62		86×70		86×72		88×75		92×75		95×75		100×84		103×88
Displacement(ml)	211		247		296		406		418		456		495		531		660		732
Compression Ratio	19:01
Rated speed(rpm)	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600
Rated output(KW)	2.5	2.8	3.6	3.9	3.68	4	5.7	6.3	5.9	6.5	6.7	7.5	7.5	8.2	8	8.5	9.2	9.8	11	12
MAX. output(KW)	2.8	3.1	3.9	4.2	4	4.4	6.3	6.8	6.5	7	7.5	8.2	8.2	9	8.5	9.2	10	10.5	12	13
Fuel consumption(G/kw·h)	＜295				＜280		＜270
Starting fashion	Manual or Electric Start
Fuel tank capacity(L)	2.5				3.5		5.5				5.5						5.5		5.5
Oil capacity(L)	0.75				1.1		1.65				1.7						1.8		1.8
Fuel type	0#(Summer)						0#(Summer)、-10#（Winter）
Oil type	10W/30SAE
Continuous running time(h)	3.0	2.5	3.0	2.5	2.5	2.0	2.5	2.0	2.5	2.0	2.5	2.0	2.5	2.0	2.5	2.0	2.5	2.0	2.5	2.0
Dimension L×W×H(mm)	415×385×470				480×465×525		510×475×565						510×475×565				510×500×590		510500640
N.W./G.W.(kg)	25/30				31/36		50/55						51/56				57/62		59/64
