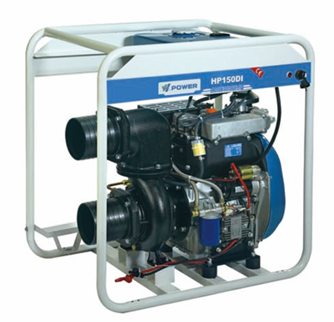

HP150DIE

 Main Features
Type HP50DI(E) HP80DI(E) HP100DI(E) HP150DI(E)
Pump Inch 2” 3” 4” 6”
Max.head(m) 75 75 40 40
Max.suction head(m) 8 8 6 6
Max.capacity(m/h) 25 42 95 205
Self-priming time(s/4m) 80 120 120 120
Engine Model HP178F(E) HP186FA(E) HP192F(E) HP295FE
Type single cylinder、4-stroke、air-cooled、vertical、diesel engine In-line,Twin
Starting fashion Manual or electric start
Fuel tank capacity(L) 3.5 5.5 5.5 30
Pump set Continuous running time(h) 2 2 2 7.5
N.W./G.W. (kg) 52/57 57/62 60/65 131/141
Dimension L×W×H(mm) 570×450×550 645×470×600 645×470×600 900×630×910
Package size L×W×H(mm) 580×460×570 655×480×615 655×480×615 925×655×1025
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
