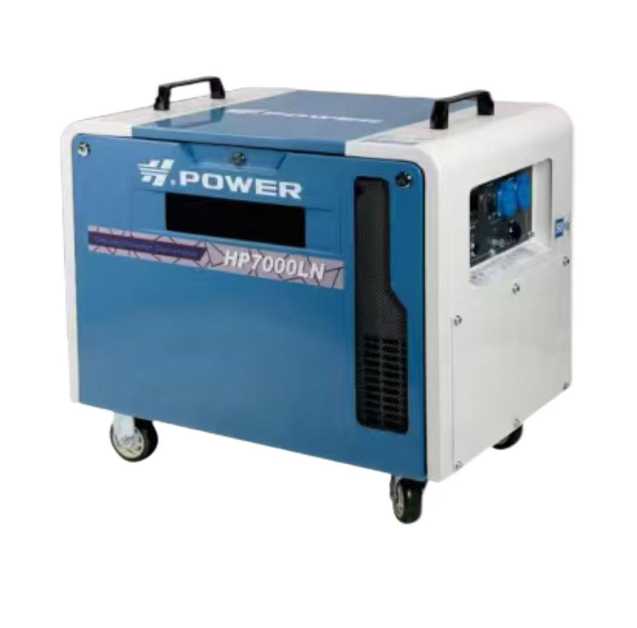

HP7000ILN

 Main Features
Type HP7000ILN
Inverter Rated frequency(Hz) 50 60
Rated output(kw) 7.0 7.5
Max output(kw) 7.5 8.0
Rated voltage(V) 110、120、220、230、240
Distortion of waveform THD≤3%
Short-circuit protection Cut the output in 1S
High-voltage test Withstand 1.2KVA voltage at the output end and housing in 5S,leak current<5mA
Power factor(cosΦ) 1.0
Engine Model HP195FE
Type Single-cylinder、4-stroke、vertical、air-cooled、diesel engine
Starting fashion Electric Start
Generator Set Type Silent type diesel generator
Fuel tank capacity(L) 12.5
Continuous running time(h) 6.5 5.5
N.W./G.W. (kg) 115/125
Dimension L×W×H(mm) 770×540×600
Package size L×W×H(mm) 795×565×715
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
