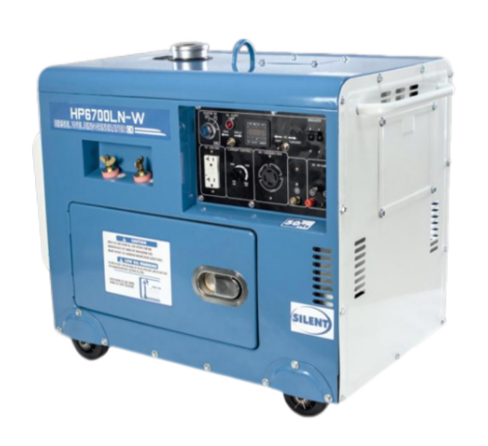

HP9000LN-W

 Main Features
Type HP6500 CXE-W HP6700 LN-W HP9000CXE-W HP9000LN-W
Generator Rated frequency(Hz) 50  60  50  60  50  60  50  60
Rated output(kw) 4.5  5  4.5  5  5.5  6  5.5  6
Rated voltage(V) 220,230,240
Power factor(cosΦ) 1
Welder Voltage without load(V) 55～65
Running voltage(V) 26
Rated current(A) 160  200
Current adjusting range(A) 50～180 50~230
Continous loading ratio 40% 40%
Welding stick(mm) 2~4 2~5
Engine Model HP186FAE HP195FE
Type Single-cylinder、4-stroke、vertical、air-cooled、diesel engine
Starting fashion Manual or Electric Start
Generator Fuel tank capacity(L) 12.5  14.5  12.5  24
Continous running time(h) 6.5/5.5 7.5/6.3 6.5/5.5 7.5/6.3
N.W./G.W. (kg) 123/127 158/163 145/155 190/200
Dimension L×W×H(mm) 740×500×635 910×520×740 740×500×635 1080×620×720
Package size L×W×H(mm) 750×510×650 940×540×765 750×510×650 1130×670×890
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
