Wuxi H-Power Machinery Co.,Ltd.

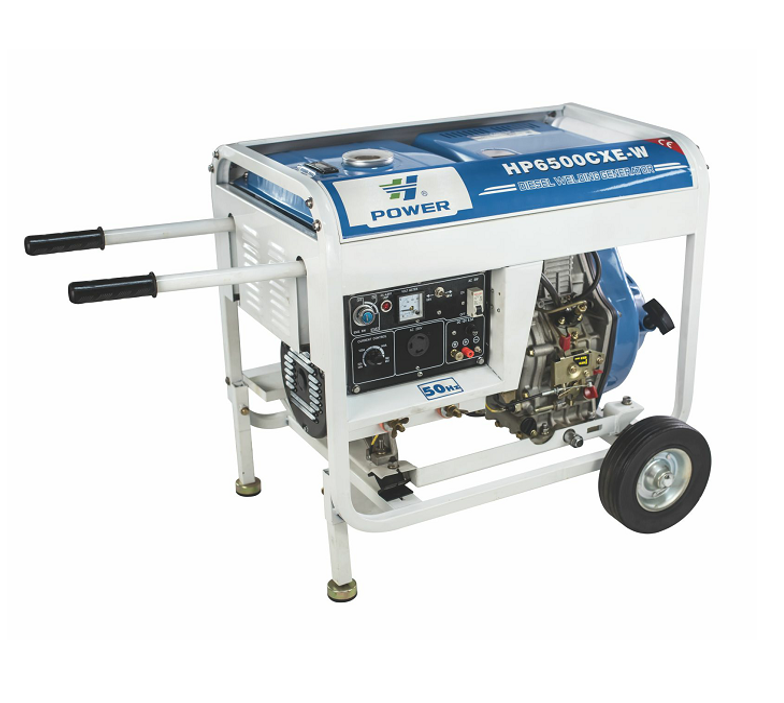

Type		HP6500CXE-W		HP8500CXE-W		HP9000CXE-W		HP9800CXE-W		HP15000CXE-W
Generator	Rated frequency(Hz)	50	60	50	60	50	60	50	60	50	60
	Rated output(kw)	2	2.2	3	3.2	3.5	3.7	4	4.2	5	5.2
	Rated voltage(V)	220,230,240
	Power factor(cosΦ)	1
Welder	Voltage without load(V)	55~65
	Runing voltage(V)	26
	Rated current(A)	160		200		230		280		350
	Current adjusting range(A)	50~180		50~230		50~250		50～300		50~400
	Continous loading ratio	40%		40%		40%		40%		40%
	Welding stick(mm)	2~4		2~5		2~5		2~5		2~5
Engine	Model	HP186FAE		HP195FE		HP1100FE		HP1105FE		HP2V95FE
	Type	Single-cylinder、4-stroke、vertical、air-cooled、diesel engine								Twin-cylinder
	Starting fashion	Manual or Electric Start
Generator	Fuel tank capacity(L)	12.5		12.5		12.5		12.5		30
	Continous running time(h)	6.5/5.5		6.5/5.5		6.5/5.5		6.5/5.5		7.5/6.3
	N.W./G.W. (kg)	123/127		135/145		145/155		165/175		260/280
	Dimension L×W×H(mm)	740×500×635		740×500×635		810×520×620		910×520×740		1260×660×760
	Package size L×W×H(mm)	750×510×650		750×510×650		830×540×720		940×540×765		1300×690×880
