Wuxi H-Power Machinery Co.,Ltd.

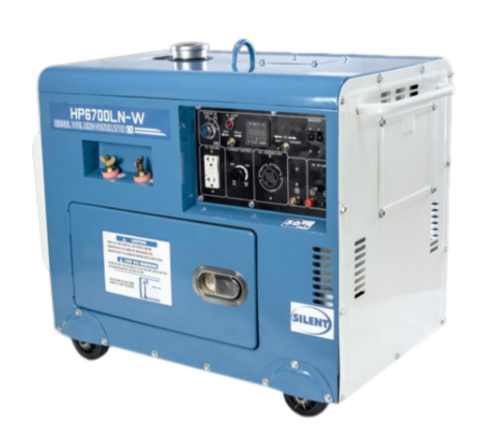

Type		HP6700LN-W		HP8500LN-W		HP9000LN-W		HP9800LN-W		HP15000LN-W
Generator	Rated frequency(Hz)	50	60	50	60	50	60	50	60	50	60
	Rated output(kw)	2	2.2	3	3.2	3.5	3.7	4	4.2	5	5.2
	Rated voltage(V)	220,230,240
	Power factor(cosΦ)	1
Welder	Voltage without load(V)	55~65
	Running voltage(V)	26
	Rated current(A)	160		200		230		280		350
	Current adjusting range(A)	50~180		50~230		50~250		50～300		50~400
	Continous loading ratio	40%		40%		40%		40%		40%
	Welding stick(mm)	2~4		2~5		2~5		2~5		2~5
Engine	Model	HP186FAE		HP195FE		HP1100FE		HP1105FE		HP2V95FE
	Type	Single-cylinder、4-stroke、vertical、air-cooled、diesel engine								Twin-cylinder
	Starting fashion	Manual or Electric Start
Generator	Fuel tank capacity(L)	14.5		14.5		24		24		32
	Continous running time(h)	6.5/5.5		7.5/6.3		6.5/5.5		6.5/5.5		7.5/6.3
	N.W./G.W. (kg)	155/165		170/180		190/200		210/220		305/310
	Dimension L×W×H(mm)	910×520×740		910×520×740		1080×610×780		1080×630×780		1260×660×760
	Package size L×W×H(mm)	940×540×765		940×540×840		1100×630×880		1100×650×880		1300×690×880
